FluidMag FRM-L
Manual cleaning

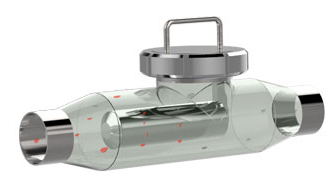

FluidMag-separators of series FRM-L control pipes in which fluid or pasty materials are conveyed. Due to the magnetic system´s design a uniform and reliable control of the whole tube´s cross-section is also possible at higher flow speeds. Metallic parts that had already been seized are held tight with great strength and can no longer be washed away.
The magnetic insertion is either fixed in the casing with a grooved nut or with a clamp. In both cases it is not necessary to use tools for removing the insertion.
Design options
- Integration into the tube pipe system

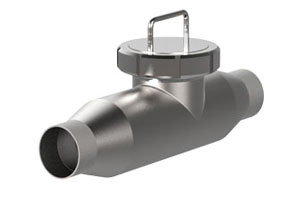

- smooth connections (standard)
- threaded ferrules DIN 11851

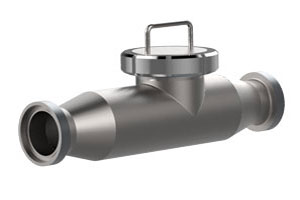

- clamp DIN 32676
- Housing material
- 304 (1.4301 standard)
- 316L (1.4404)
- operating pressure
- The approved operating pressure is max. 6 bar. Higher values are possible and must be agreed upon.
