FluidMag FRM-W
EasyClean-type

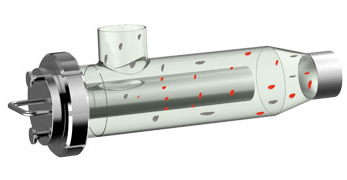

The magnetic insertion of the FluidMag-separators of series FRM-W is situated in a corner type pipe casing. The integrated magnetic system is arranged in conveying direction – as a consequence magnetizable particles are exposed to the magnetic field as long as possible. The monitoring quality is thus increased distinctly.
The FluidMag-separator is above all used for monitoring fluid or pasty products.
An EasyClean-stripping unit supports the magnetic system in the cleaning process. The seized metallic particles can be removed easily.
Design options
- Integration into the tube pipe system
- smooth connections (standard)
- threaded ferrules DIN 11851
- Clamp DIN 32676
- Housing material
- 304 (1.4301 standard)
- 316L (1.4404)
- operating pressure
- The approved operating pressure is max. 6 bar. Higher values are possible and must be agreed upon.
