BoxMag RFM-SS
EasyClean-type

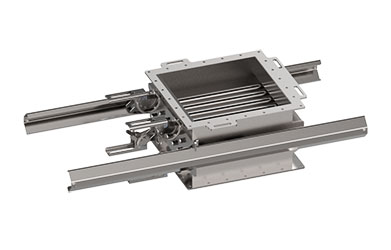

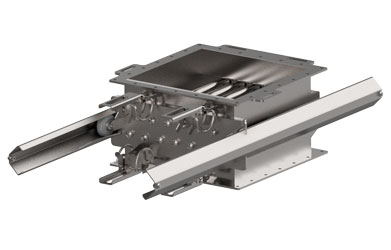

BoxMag separators in rectangular design are installed in drop shafts. The arrangement of the installed magnetic rods makes sure that the complete product flow range can be controlled by strong magnetic fields. Very fine magnetizable contaminations are retained.

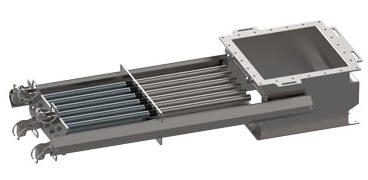

During the cleaning process lateral guide rails carry the insertions´ weight. So this magnetic system is also very well suited for larger housing designs.
Special connecting pieces ASS are available for the assembly into a pipe.
Design options
- Integration into the tube pipe system
- flanges (standard)
- connection pieces type ASS
- Housing material
- 304 (1.4301 standard)
- 316L (1.4404)
- 316Ti (1.4571)
- ATEX
- After previous agreement we can deliver all BoxMag-systems with the equipment for the use in the ATEX area up to zone 20
