FluidMag FRM-TD
EasyClean-type
The casing of this FluidMag separator is double-walled. Due to the heating jacket products - that must be kept warm during pumping - maintain their temperature and flowability. Magnetizable particles are attracted by the strong magnetic field of the installed filter rods and held tight.
The compact design and easy integration into the tube system ensures an easy installation even for narrow and tight spaces.

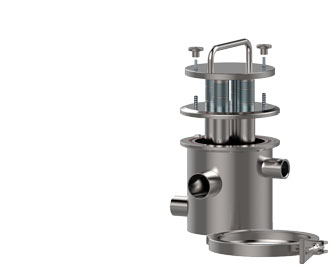

For the cleaning of the magnetic system the operator is supported by an EasyClean-stripping unit device. The seized metallic parts can then be removed without any efforts.
Design options
- Integration into the tube pipe system
- smooth connections (standard)
- threaded ferrules DIN 11851
- Clamp DIN 32676
- Housing material
- 304 (1.4301 standard)
- 316L (1.4404)
- operating pressure
- The approved operating pressure is max. 6 bar. Higher values are possible and must be agreed upon.
